Details

Model:MultiSafe HS 36

Place of Origin:Germany

36 KV AC / 36 KV

DCSAFE, TWO-POLE

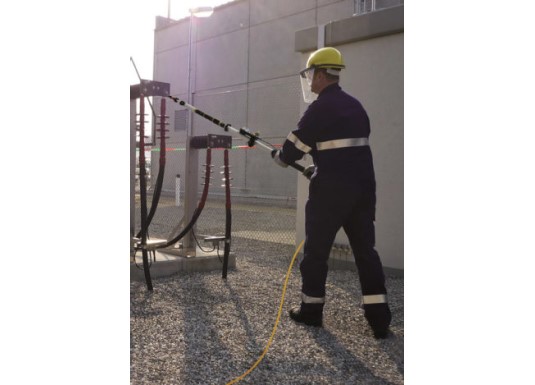

The MultiSafe HS 36 is a two-pole high-voltage tester with a fixed connection to earth potential. It is ideal for testing AC and DC voltages on converters and feeders in power engineering, on ships and on transport railway systems.


Fully automatic measuring sequences and only one button eliminate operating errors. Its integrated self-test enables the quick functional testing of the device on site without further aids.


Its 360° visual display system, complemented by LCD display and audible warning, guarantee good perception in all environments.The sealed protective resistors reduce the high voltage to harmless levels. We guarantee the highest level of safety through surge voltage tests > 250 kV, > 40 kV high-voltage-resistant earth wire and the unique TST safety module with continuous redundant monitoring.

VOLTAGE TESTER

    *  precise display of the voltage 50 – 36 000 V AC / 36 000 V DC

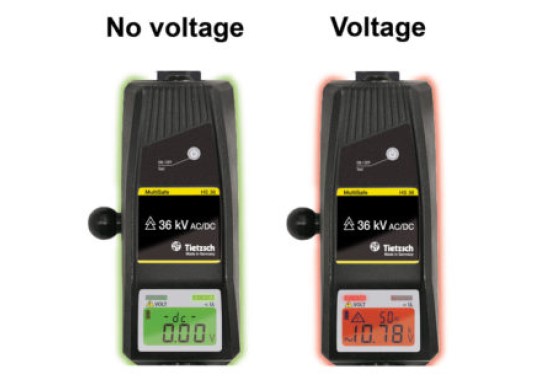

    *  large two-color illuminated display (red / green) for a clear warning of dangerous voltages

    *  clear LED indicator for dangerous voltage

    *  360° illuminated band lights up (red / green) in all directions

    *  acoustic warning of dangerous voltage

SAFETY

* integrated self-test to test the protective resistors, the display and the electronics

* over 300 kV surge voltage

* highest degree of safety provided by molded protective resistors within the double-walled GRP-tube

* special connection cable over 40 kV isolated


泰兹 - HS 36 -4_535x385.jpg泰兹 - HS 36 -3_535x385.jpg

FURTHER FUNCTIONS

* for indoor and outdoor installations

* different test electrodes for every application

* easy operation with just one button

* extremely stable housing, even in cold environment

* IP 65 – waterproof

* demountable for easy transport
