Details

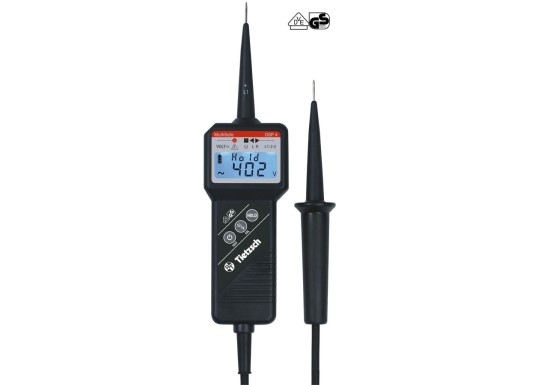

Model:MultiSafe DSP 4

Place of Origin:Germany

Product Characteristics

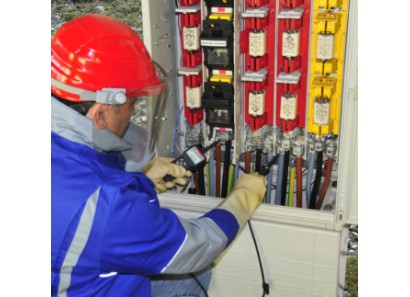

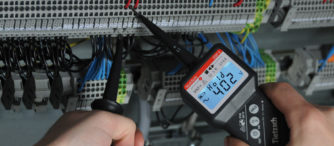

The MultiSafe DSP 4 is a safetesting device for all applicationsin power engineering – easy handling, precise, reliable.

* Precise indication of voltage from 1 V up to 1200 V AC / 30 mV up to 1500 V DC

* Phase and phase sequence tests(possible with gloves) continuity tester 1 kΩ up to 2000 kΩ

* Highest degree of safety provided byprotective resistors in both test prods

* Easy operation large illuminated display

Robust design

High-quality elements guarantee function and safety under extreme conditions:

* Impact resistant plastic casing andbreak-proof display cover

* Dust- and waterproof (IP 65, approved for operation in outdoor areas)

* Spring-mounted test contacts

* win insulated PUR sheated cable

Technical data

Two-pole voltage tester MultiSafe DSP 4 / DSP 4-F tested and certified by VDE in accordance with EN/IEC 61243-3 (VDE 0682 part 401)

Nominal voltage : 24 ... 1000 V AC / 1500 V DC

                            (according to VDE: automatic switch on/over at ≥ 24 V)

Display range : 1 V ... 1200 V AC

                         0,03 V ... 1500 V DC

Frequency : 15 Hz ... 10 kHz < 500 V, 15 Hz ... 4 kHz > 500 V

Indication of voltage/phase/phase sequence :

    4 LEDs for voltage, continuity, phase sequence

    LCD digital indication, backlighted

    7-segment display, 2 lines, 0 ... 1999 digit
