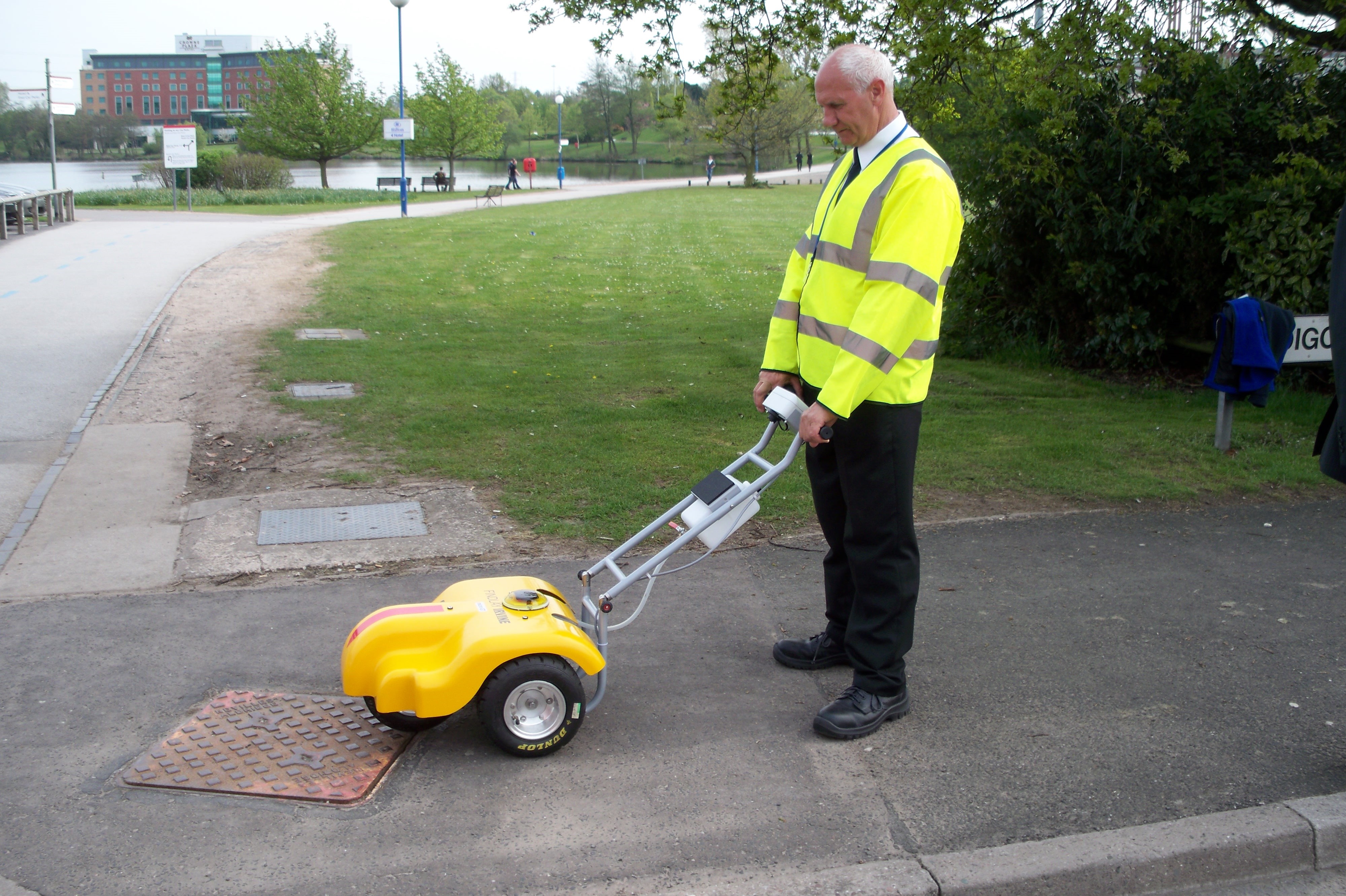

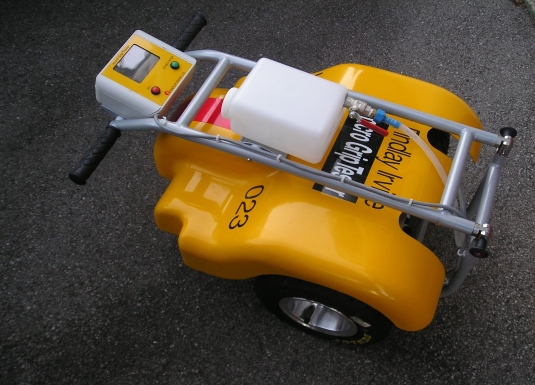

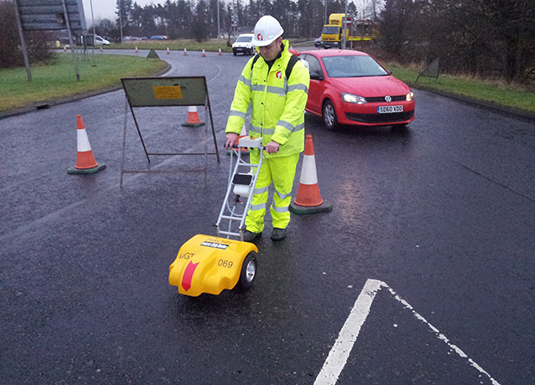

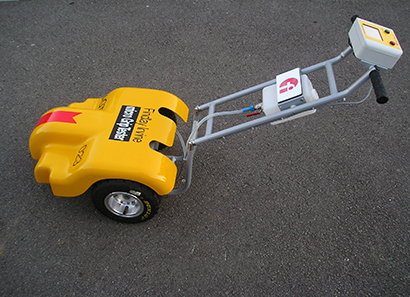

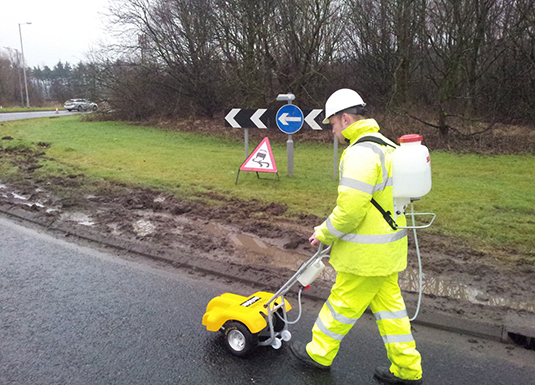

The Mcro GripTester has been developed by Findlay Irvine in order to allow engineers measure the skid resistance of almost any surface in a continual test. Designed as a replacement for British Pendulum, Micro GripTester can easily measure Skid Resistance of any surface or markings at walking pace. The Micro GripTester is based utilises exactly the same 15% fixed slip-locked wheel measuring principle as GripTester MkII which is used worldwide to measure skid resistance. The built in touch screen display, is simple to use and stores results either directly onto its inbuilt hard drive or onto any USB storage device. This allows operators to save their surveys directly onto removable hard drive and view the results on a computer.

The Micro GripTester can be used to measure available grip for many applications such as:

* Pedestrian areas

* Road markings

* Markings

* Reinstatements

* Iron works

* Accident sites.

MK2 the Micro GripTester is a push speed continuous friction measuring device that allows reliable collection of friction data in areas unsuitable for larger friction testers. Micro GripTester’s unique design allows it to be used as a one person operation and with no user calibration required it could not be more simple to get consistent, accurate measurements regardless of the site.

The micro GripTester is a cost effective, dynamic alternative to Pendulum spot measurements. micro GripTester’s design allows it to be used as a one man operation and with no user calibration required it could not be more simple to get consistent, accurate measurements regardless of the user.

The inbuilt software and touchscreen display are designed to help guide the user through the testing process. The data is stored on the display unit and easily transferred via USB in CSV and MDB formats.

Viewing software is provided so that Skid Resistance data collected by the micro GripTester can be quickly and easily viewed in a graphical format. The data can also be viewed on any csv compatible program where it can be output into different formats.

micro GripTester’s light weight, robust construction and reliable performance make it the most deployable push friction tester in the world.

Integrated GPS means that all surveys carried out can be overlaid on a map to provide a graphical Grip Number display or imported into a pavement management or GIS system. The micro GripTester’s clever design results being unaffected by bends, cambers or inclines and any horizontal slope is measured and reported so as not to skew the results.
